Copal Glass Fiber Reinforced Concrete Balcony
On Request Project
Balcony are 3/4 inch thick, made on request. Maximum wide of 8 feet and maximum length of 13 feet with or without border...
Installation
The balconys are easy to install. Use cement tools to cut it. Ready to use , don't need any coating over it....
Weight
Weight 7.4 pounds per square/feet.GFRC is a Portland cement-based composite reinforced with glass fibers that is alkali resistant.
Flexible
GFRC strength result of the flexibilty and the traction of the glass fiber...
Asbestos free
GFRC is asbestos free. Used in Europe since 50 years...
Utility
Used to cover industrials, commercials et résidentials building...
Building Code
GFRC is covered in Section 1903.11 of the Uniform Building Code(49) and in ICBO’s Evaluation Report ER-4359(49), Section 1406.3 of the National Building Code(87), Section 1910 of the Standard Building Code(88), and Table 719.1 (2) items 15-1.10 and 15-1.11 of the International Building Codes(96).GFRC Construction.
Fire Endurance
GFRC made of cement, glass fibers, sand and water,therefore non-combustible and meets the requirements of ASTM E136 and the CAN/ULC S-114. When used as a surface material, its flame spread is zero. In addition, tests for non-combustibility, ignitibility, and fire propagation have been conducted in England in accordance with the appropriate British Standard on “Fire Tests on Building Materials and Structures”. BS 476. NFPA255, ANSI/UL723 et UBC8-1.
Fire Endurance
GFRC made with polymer curing admixtures will meet the requirements of NFPA Class A and UBC Class I when tested according to ASTM E84, resulting in a “0” Flame Spread Rating and less than 5 smoke density. GFRC can be designed to provide one and two hour fire rating. The rating is defined in ASTM E119.Balcony are 3/4 inch thick,7.4 pounds per sq/ft made on request. Maximum wide of 8 feet and maximum length of 13 feet with or without border...The balconys are easy to install. Use cement tools to cut it. Ready to use , don't need any coating over it.... fix it with screw or glue it with adhesive like PL from Lepage. Sealant made of polyurethane like 3M 550 can be use between the balcony panels.Warranty 5 years. Parallel support must be each 24 inches center.
GFRC ... GFRC is a Portland cement-based composite reinforced with glass fibers that is alkali resistant.GFRC strength result of the flexibilty and the traction of the glass fiber...GFRC is asbestos free. Used in Europe since 50 years...Used to cover industrials, commercials et résidentials building...
Bulding code GFRC is covered in Section 1903.11 of the Uniform Building Code(49) and in ICBO’s Evaluation Report ER-4359(49), Section 1406.3 of the National Building Code(87), Section 1910 of the Standard Building Code(88), and Table 719.1 (2) items 15-1.10 and 15-1.11 of the International Building Codes(96)GFRC Construction.
Fire endurance. GFRC made of cement, glass fibers, sand and water,therefore non-combustible and meets the requirements of ASTM E136 and the CAN/ULC S-114. When used as a surface material, its flame spread is zero. In addition, tests for non-combustibility, ignitibility, and fire propagation have been conducted in England in accordance with the appropriate British Standard on “Fire Tests on Building Materials and Structures”. BS 476. GFRC made with polymer curing admixtures will meet the requirements of NFPA Class A and UBC Class I when tested according to ASTM E84, resulting in a “0” Flame Spread Rating and less than 5 smoke density. GFRC can be designed to provide one and two hour fire rating. The rating is defined in ASTM E119. NFPA255, ANSI/UL723 et UBC8-1.
Triangle balcony
GFRC COPAL Step

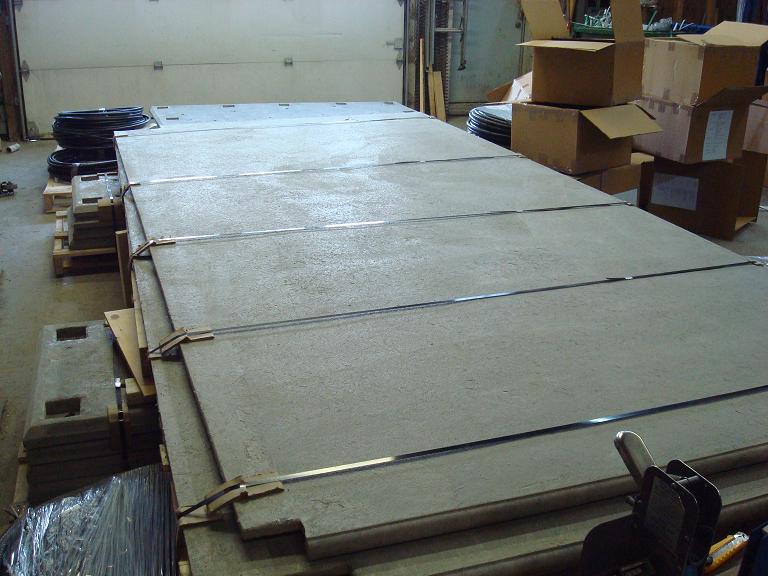

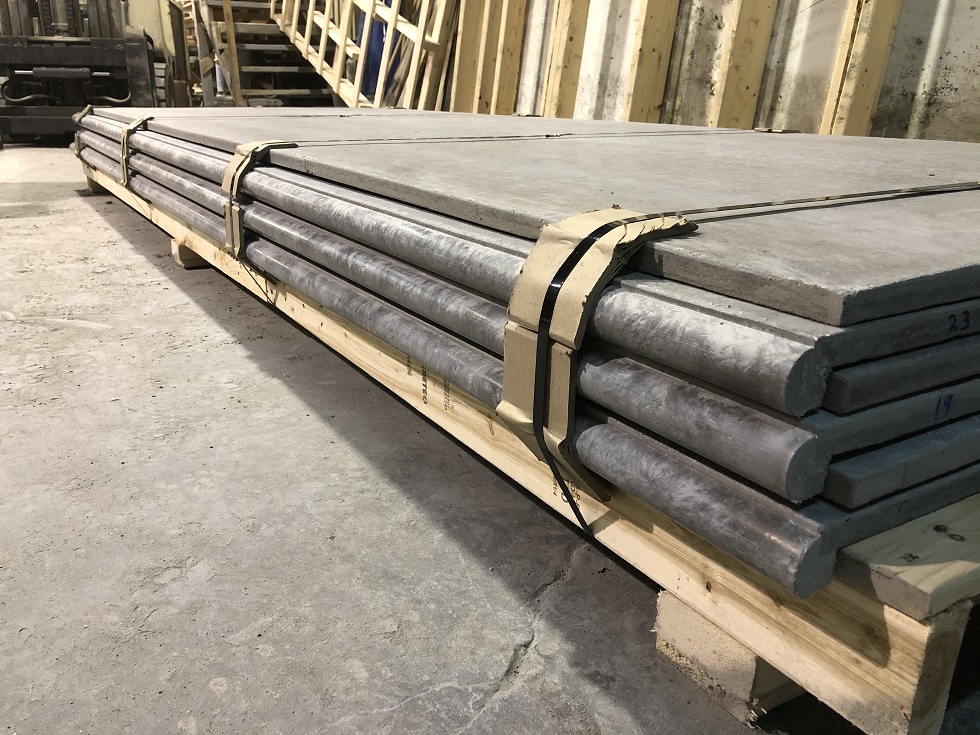

Balcony palette.
Balcony texture.
charcoal balcony.
balcony 6 feet x 13 feet (weight +- 575 pds)on request.
